30A PWM Solar Charge Controller IP68 Waterproof Fit for Lithium ion Lifepo4 Lead-Acid Battery

Safety Instructions: A) The solar charge controller can be charged for lead acid batteries (Sealed, Flooded, AGM, GEL),3S or 6S lithium ion and 4S or 8S lifepo4 batteries, but you need to confirm and set correct battery type as quick as possible after controller is activated. B) The battery cable should be as short as possible to minimize loss C) This controller can only use the photovoltaic panel as the charging source. Do not use the DC power supply as the charging source. D) The controller will generate heat during operation, so please keep it in cool and well-ventilated place to maintain good heat dissipation Specification: Color: Black Rated Charging/ Discharging Current:30A Max Solar Input Voltage: ＜50V System Voltage: 11.1V/12V/12.8V/22.2V/24V/25.6V Self consume: ＜10mA at 12V Float Charging: 12.3V/13.7V/14V/24.6V/27.4V/28V Discharge Reconnect Voltage: 10.5V/12V/12V/21V/24V/24V Discharge Stop Voltage: 9.5V/10.7V/11.2V/19V/21.4V/22.4V Operating Temperature:-20℃~+60℃ Material: Aluminum alloy Wire Gauge:12AWG (Silicone Rubber Cable) Size/Weight: 82x95x22mm/230g Package Included: <1x Waterproof solar charge controller 1x User Manual

• 1) IP68 waterproof grade, the 30A solar controller can be used for outdoor solar system, made with premium aluminum alloy shell, with cables/heat sink/4pcs mounting holes.
• 2) Can fit for 3 types of batteries, you can use it to charge 3S/6S lithium ion battery, 4S/8S lifepo4 battery and all kinds of lead acid batteries. (Flooded Sealed, AGM or GEL)

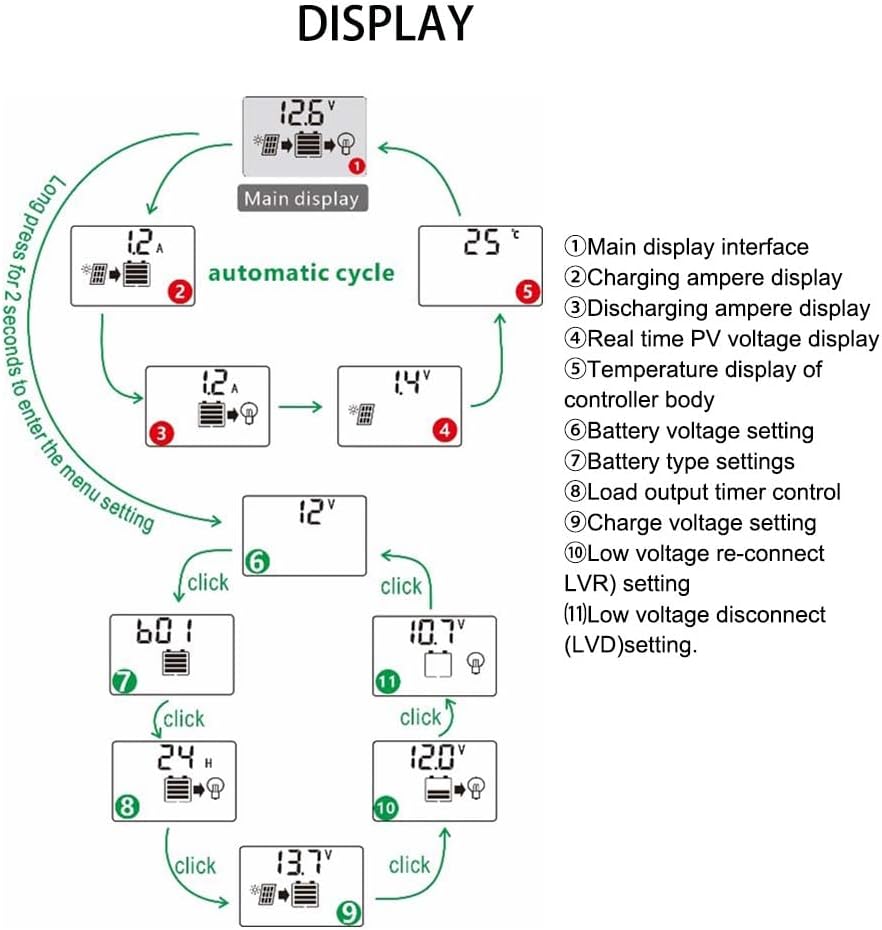

• 3) Designed with a LCD display screen, you can see charging/discharging current, charging voltage and system voltage. It has continuous discharging mode and Dust to dawn discharging mode, so you can apply for solar system widely.
• 4) Default battery type is for lead acid , it can be used for both 12V and 24V solar system, default is for 12V solar system, if for 24V solar system, pls set manually.
• 5) With all the necessary protection: short circuit protection, reverse protection, over charging protection, over load protection and high temperature protection.
